Business Objects BI 4.0 - Installation Step by Step

Hi,

Lets see how to install Business Objects 4, next upcoming blog shall be Installing Business Objects Data Services  (NEW LINK : please see http://bods4.blogspot.com/)

The step by step installation procedure is as follows :

1. Run the setup.exe from Business objects 4 Installer disc / Folder.


 2. If the installer gives error then run setup with Administrator Privileges

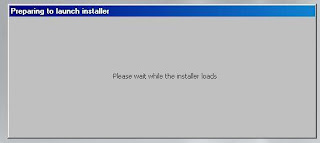

Note: Installer initialization may take some time so be patient.

 3. Click -> OK

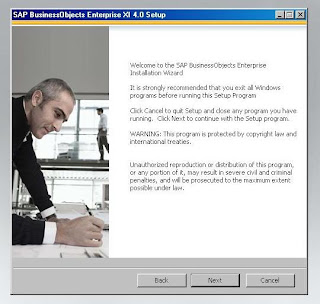

 4. Click -> Next
Note: Without fulfilling critical pre-requisites the installation cannot continue, please see installation manuals for more details.

 5. Click -> Next
 6. Click 'I accept the License Agreement' & then click -> Next

 7. Give the name and organization (not mandatory), give the product key code and click -> Next

 8. Click -> Next

9. Select your installation type and click -> Next
Note: If you want to do customization, please consult installation manual.

 10. Give path of installation and click -> Next

 11. Click -> Next

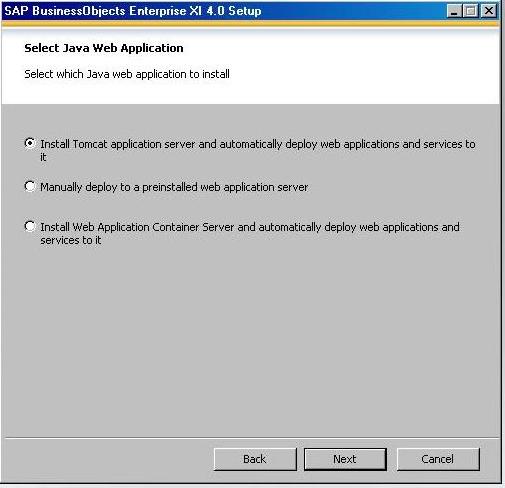

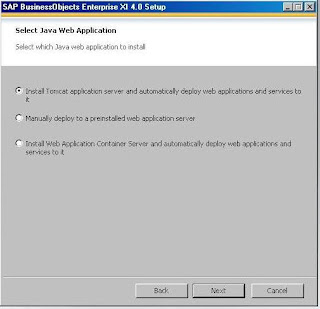

 12. Click 'Install Tomcat server and automatically deploy.....' and click -> Next


13. Click 'Install and use Subversion' & click -> Next

 14. In Node Name give the name of your machine and click -> Next

 15. Click -> Next

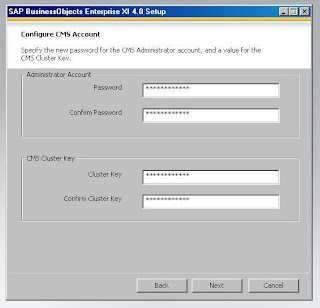

 16. Give the password for Administrator Account and CMS Cluster Key, both are mandatory & then click -> Next

17. Give the password for ' sa ' user account of SQL Server and credentials for SAP BO User account and click -> Next

 18. Click -> Next

19. Give the password for the Repository user of LCM and click -> Next

20. click -> ' Do not configure connectivity to SMD Agent ' and click -> Next
Note: Please consult installation guide and Administration/Configuration Guide to set  connectivity to Solution Manager

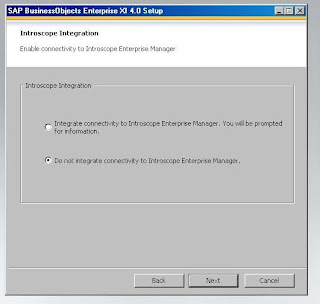

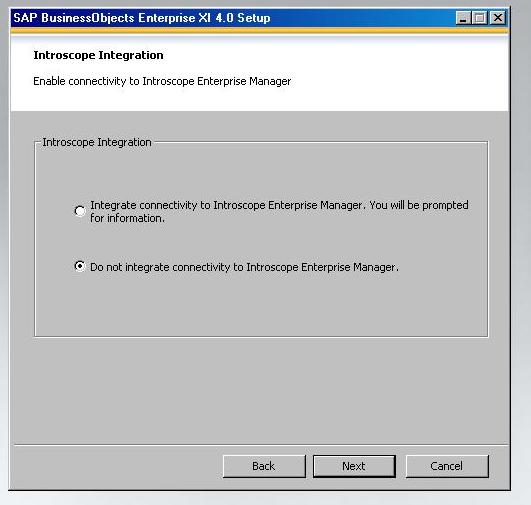

 21. Click 'Do not integrate connectivity to Introscope Enterprise Manager ' and click -> Next

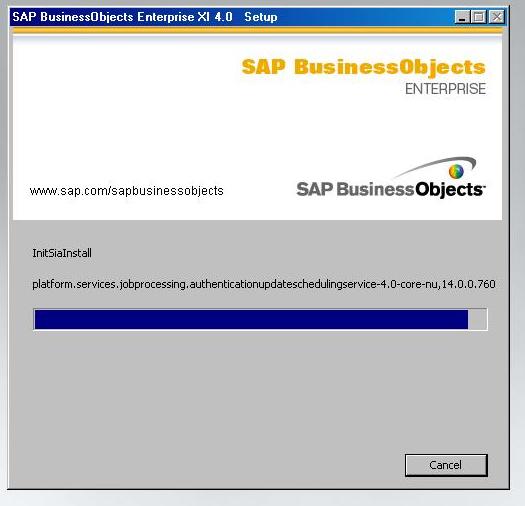

 22. Click -> Next , and now be patient - installation will take some time depending upon your hardware and software configuration

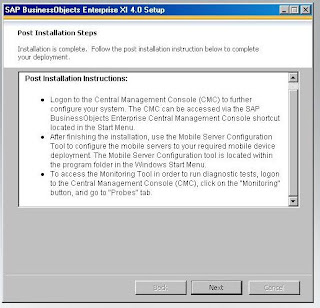

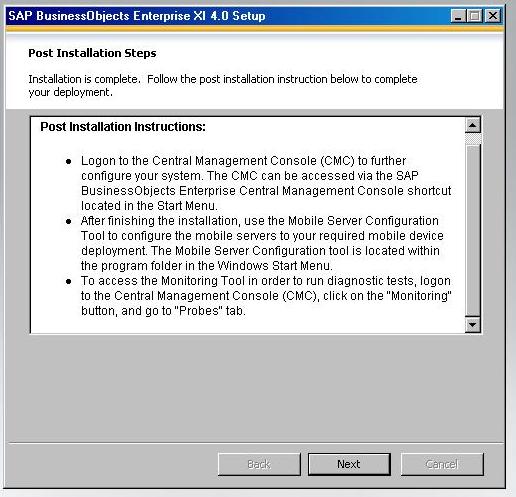

23. Click -> Next
Note: Post Installation instructions are not mandatory
 24. Click -> Finish

-------------------------------------------------------------------------------------------------------------
Disclaimer :

Please note that this blog is in no way connected to SAP AG or to any other company, all matter provided is on as-is basis. Further your queries , comments, corrections and/or suggestions are welcome , you can always reach me at my email : razakashif.sap@gmail.com

Note: If i am not responding to this blogs' posts then you may please email me
-------------------------------------------------------------------------------------------------------------

Warm Regards,

Raza Kashif
SAP Consultant
SAP BI / SAP BW / SAP Business Objects
-------------------------------------------------------------------------------------------------------------
Some more screens to share with you guys are :





-------------------------------------------------------------------------------------------------------------
Good Day !
